SC65F flange encoder external diameter 65mm shaft 15mm with 5*5mm keyway radial socket
Part Number of SC65F to select
SC65F-T3PH2880D
SC65F-C2V2500D
SC65F-T1F2048
SC65F-C6E2000
SC65F-T4C1440D
SC65F-C3VL1200
SC65F-T2P1000D
SC65F-C1F1024
SC65F-C1F4096
SC65F-T6E3600D

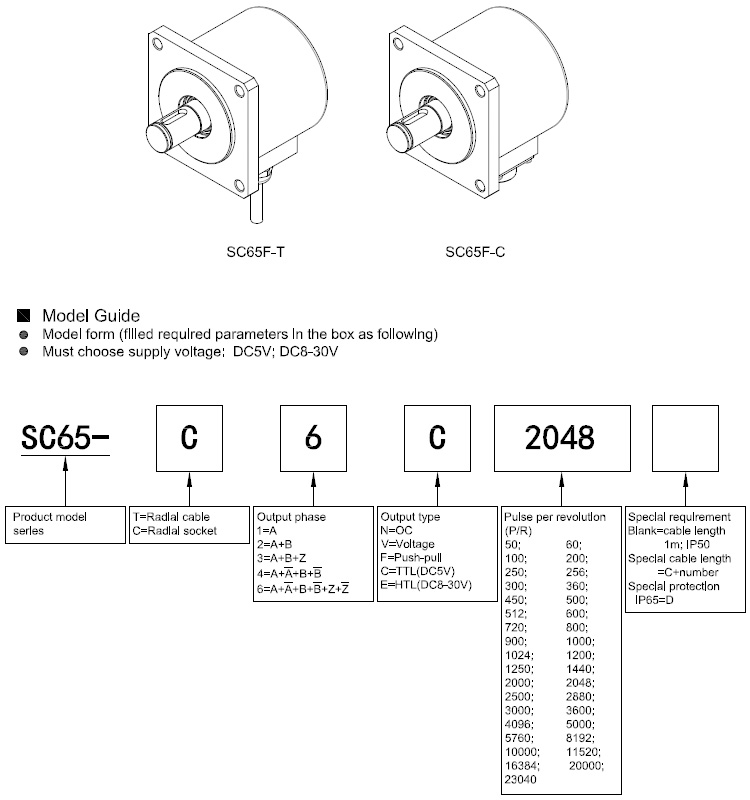

SC65F Series encoder Product introduction
| Items | Basic parameters |
| Brand | HENGXIANG |
| Encoder type | Incremental encoder |
| External diameter | 65mm |
| Thickness | 58mm |
| Flange dimension | 68mm x 68mm |
| Installation dimension | 56mm x 56mm |
| Shaft length | 26mm |
| Solid Shaft diameter | 15mm( KEYWAY 5mm) |
| Resolution | 50;60;100;200;250;256;300;360;400;450;500;512;600;720;1000 |
| 1000;1024;1200;1250;1440;1800;2000;2048;2500;2880;3000; |
| | 3600;4000;4096;5000;5760;8192;10000;11520;16384;20000; 23040 |
| Output phase | Phase A+,B+,Z+,A- B- Z- |
| Supply voltage | DC5V ； DC8-30V |
| Outlet type | Radial cable |
| Radial socket |
| | NPN/PNP(Open Collector Output) |
| | Voltage output |
| Output mode | Push-pull output |
| | line drive (26LS31) TTL |
| | line drive(DC8-30V) HTL |
| Protection grade | IP50 ; IP65 |
Factory Encoder Production Capability
5000 pieces per month
-------- Production Line Capacity
50000 pieces per year
--------Actual Units Produced (Previous Year)
Why choose us?
HENGXIANG brand--The trustworthy partner
CE approved--advantaged product quality;
Fast delivery--strong stock product ability;
Factory directly provide a competitive price;
One-stop service--for your efficient purchasing experience;
OEM design accepted--customized design, your own brand accepted.
Delivery date
3-5 working days for sample after full paid
7-15 days for mass production after full paid
Usage of SC65F rotary encoder
- Pharmaceutical machine
- VVVF motor
- DC motor
- Stepper motor
- Servo motion controller
- Gearbox
- DC garage door motor
- DC servo motor
- Stock driver
- PMDC geared motor
- Brushless dc motor
- Servo motor
- Drawing machine
- VFD
- Inverter
- Variable frequency driver
- Embroidery machine
- Elevator
- Printing machinery
Matters needing attention
1. Must choose the power supply voltage: DC5V or DC8-30V
2. Must choose leaf spring plate model number if you select hollow shaft encoder
3. Please advise the motor speed (RPM) that you actually use
4. If you have any other requirements, please provide detail parameters
