1200 Resolution Totem Pole S52F Solid Shaft Encoder

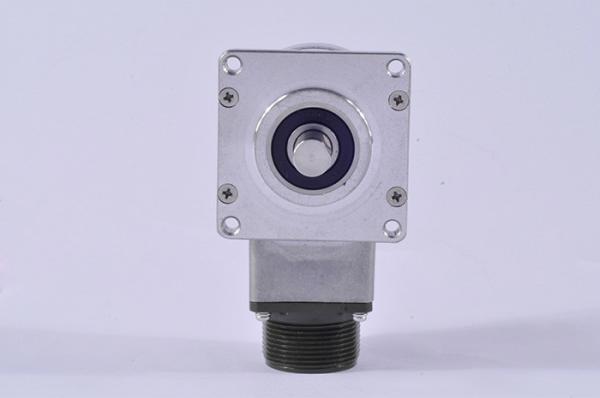

S52F solid shaft encoder 1200 resolution totem pole output optical encoder with square flange

Our advantage

· Over 18 years encoder production experience

· More than 20 years experienced engineers

· Professional working team

· High quality standard

· Quick Response time

· Utility Model Patent Certificate

· Own brand and unique brand

· CE certification for all models

· Prompt delivery date

· 100% full inspection before shipment

Factory Encoder Production Capability

5000 pieces per month

-------- Production Line Capacity

50000 pieces per year

--------Actual Units Produced (Previous Year)

Specification for S52F flange encoder

Items	Basic parameters
Brand	HENGXIANG
Encoder type	Incremental encoder
External diameter	52mm
Thickness	44mm
Flange dimension	52mm x 52mm
Installation dimension	44mm x 44mm
Shaft length	16mm
Solid Shaft diameter	10mm(D shape)
Resolution	50;60;100;200;250;256;300;360;400;450;500;512;600;720;1000
	1000;1024;1200;1250;1440;1800;2000;2048;2500;2880;3000;
	3600;4000;4096;5000;5760;8192;10000;11520;16384;20000; 23040
Output phase	Phase A+,B+,Z+ , A- B- Z-
Protection grade	IP50 ; IP65
Cable length	1M (cable length could be added appropriately by
	require, but it need payment individually)
Consumption current	100mA MAX
Top response frequency	300KHZ
Allowable ripple	≤3%rms
Load Voltage	≤DC30V
Insulation strength	AC500V 60s
Insulation resistance	10MΩ

Applications

· Petrochemical industry

· Pharmaceutical industry

· Food industry

· Printing machinery

· Projector

· Injection molding machine

· Disc shoe machine,

· Textile dyeing

· Leather machine

· Paper equipment

· Industrial machinery

· Paper cutter

· CNC machine tool

· Automatic measurement

· Remote control

Payment terms:

1. T/T, western union, credit card, Paypal, etc

2. 3-5 working days after payment received

3. Encoders will be shipped once ready

Matters needing attention

1. Must choose the power supply voltage: DC5V or DC8-30V

2. Must choose leaf spring plate model number if you select hollow shaft encoder

3. Please advise the motor speed (RPM) that you actually use

4. If you have any other requirements, please provide detail parameters
