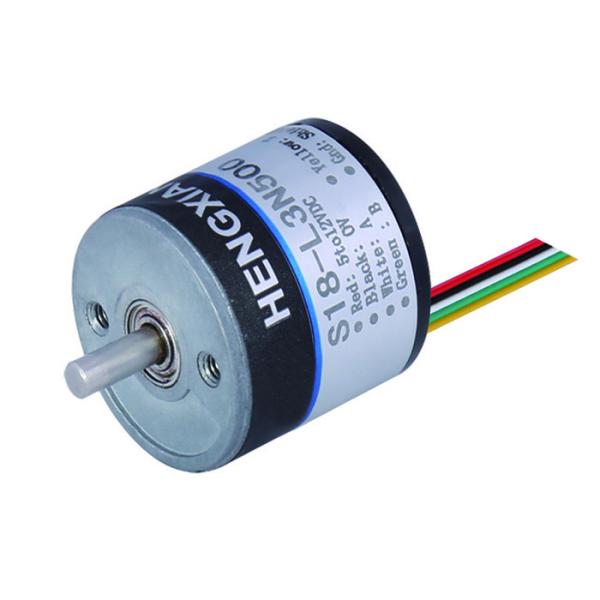

lid Solid shaft encoder S18 solid shaft 2.5mm stainless steel material used in micro robot
Parameter table
| Brand |
HENGXIANG |
| External dimensions |
External diameter: 18mm |
| Thickness: 18mm |
| Solid Shaft diameter: ⌀2.5mm |
| Resolution |
36;50;60;100;200;250;256;360;400;500;512；720；800；1000;1024；1440;1600 |
| Output phase |
Phase A,B,Z |
| Supply voltage |
DC5V ; DC8-30V |
| Outlet type |
Cable out from side |
| |
Cable out from back |
| Output mode |
Collector open circuit output(NPN &PNP) |
| Environmental temperature |
Operating temperature: -20~+80° (Non icing) |
| |
Storage temperature: -25~+85° (Non icing) |
| Environmental humanity |
Operating and storage: 35~85%RH (non-condensing) |
| Top response Frequency |
100kHz Max |
| Top Rev |
5000rpm |
| Protection grade |
IP50 |
| Consumption current |
50mA Max |
| Rise/ Fall time |
100nsec Max |
| Shaft Load |
Radiel: 2N; Axial:2N |
| Vibration(endure) |
Amplitude 0.75mm,10-50Hz,1 hour for X/Y/Z direction individually |
| Shock(endure) |
49/m/s2,three times for X,Y,Z direction individually |
| Shaft Material |
304 stainless steel |
Our advantage
· Over 18 years encoder production experience
· More than 20 years experienced engineers
· Own brand and unique brand
· CE certification for all models
· Prompt delivery date
· 100% full inspection before shipment
· Customers from about 200 countries
· IS09001:2015 Certification
· Trademark Registration certificate
Applications
· Petrochemical industry
· Pharmaceutical industry
· Food industry
· Disc shoe machine,
· Textile dyeing
· Leather machine
· Paper equipment
· Industrial machinery
· Paper cutter
· CNC machine tool
· Automatic measurement
· Remote control
Why choose us?
· HENGXIANG brand--The trustworthy partner
· CE approved--advantaged product quality;
· Fast delivery--strong stock product ability;
· Factory directly provide a competitive price;
· One-stop service--for your efficient purchasing experience;
· OEM design accepted--customized design, your own brand accepted.
Payment terms:
· 1. T/T, western union, credit card, Paypal, etc
· 2. 3-5 working days after payment received
· 3. Encoders will be shipped once ready
Matters needing attention
· 1. Must choose the power supply voltage: DC5V or DC8-30V
· 2. Must choose leaf spring plate model number if you select hollow shaft encoder
· 3. Please advise the motor speed (RPM) that you actually use
· 4. If you have any other requirements, please provide detail parameters
