S65 external dia 65mm sturdy durable long service life low price resolution up to 23040ppr solid shaft 8mm
★1. Simple instructions of S65 series rotary encoder
External diameter: 65mm
Thickness: 53mm
Shaft length: 16mm
Supply voltage: DC5V ; DC8~30V
Protection grade: IP50 ; IP65
Insulation strength: AC500V 60s
Insulation resistance: 10MΩ
Mark to Space ratio: 45% to 55%
Shaft load: Radial 30N; Axial 20N
Top REV:: 5000RPM ;IP65≤3000r rpm
| Items | Basic parameters |
| Brand | HENGXIANG |
| Encoder type | Incremental encoder |
| External diameter | 65mm |
| Thickness | 53mm |
| Installation dimension | diameter 48mm |
| Shaft length | 20mm |
| Solid Shaft diameter | 8mm(D shape) |
| Resolution | 9;20;30;50;60;100;200;250;256;300;360;400;450;500;512;600;720;900 |
| 1000;1024;1200;1250;1440;1800;2000;2048;2500;2880;3000; |
| 3600;4000;4096;5000;5760;8192;10000;11520;16384;20000;23040 |
| Output phase | Phase A+,B+,Z+ ,A- B- Z- |
| Supply voltage | DC5V ; DC8~30V |
| Outlettype | radial cable |
| radial socket |
| Output mode | Collector open circuit output |
| Voltage output |
| Push-pull output |
| Difference output | Long line drive (26LS31) |
| compatible RS422 |
| Long line drive (RT7272) |
| Protection grade | IP50 ; IP65 |
| Cable length | 1M (cable length could be added appropriately by |
| require, but it need payment individually) |
| Consumption current | 100mA MAX |
| Top response frenquency | 100KHZ |
| Allowable ripple |  |
| Load Voltage | ≤DC30V |
| Insulation strength | AC500V 60s |
| Insulation resistance | 10MΩ |
| GND | not connect to encoder |
| Mark to Space ratio | 45% to 55% |
| starting torque | less than 5x 10-3 N.m |
| Intertia moment | less than 3x 10-6kg.m2 |
| Shaft load | Radial 30N; Axial 20N |
| Top REV | 5000RPM ;IP65≤3000r rpm |
| Bearing life | 1.5x109 revs at rated load(100000hrs at 2500RPM) |
| Environmental temperature | Operating:-20 ～+80°；storage:-25 ～+85° |
| Enviromental humidity | Operating and storage: 35-85%RH(noncondensing) |
| Vibration(endure) | Amplitude 0.75mm,5-55Hz,2 hours for three axis individually |
| Sock(endure) | 490m/s2 ,11 ms three times for X,Y,Z direction individually |
| Shaft Material | Stainless steel |
| Shell Material | Dia cast aluminium |
| Cable length | 1000mm(cable with shielding) |
| Certification | CE |
| package | Carton box |
| Net weight | About 350g (with package) |

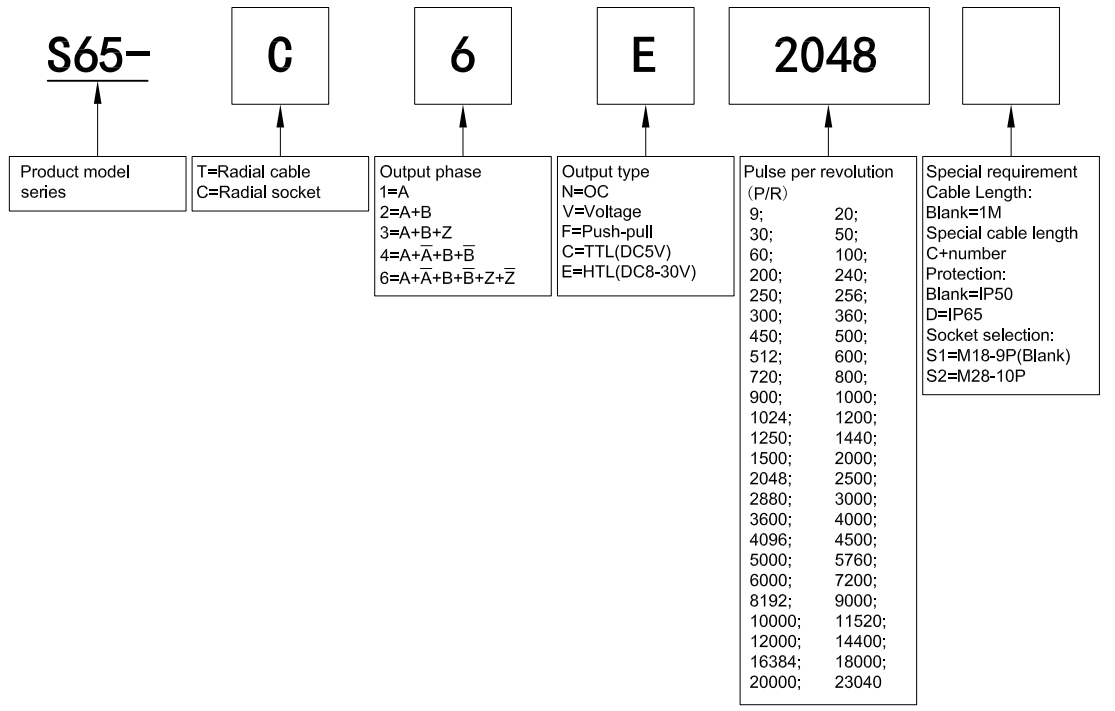

★2. Associated model number of S65 series
....
★3. Production date
1. for 1-10 samples: 3-5 working days
2. for 20-50 mass production: 7-10 working days
3. for over 100pcs, production will be discussed with customers and ship on time
★4.Shipment
Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.
You could select the express according to your requirements if freight collector
If you do not have any courier account, we will check and find a cheapest and safety express for you.
Our factory has 30% discount with most courier company, so price could be as cheap as possible.
★5. The reason to choose us
HENGXIANG brand--The trustworthy partner
CE approved--advantaged product quality;
Fast delivery--strong stock product ability;
Factory directly provide a competitive price;
One-stop service--for your efficient purchasing experience;
OEM design accepted--customized design, your own brand accepted.
★6. FAQ
Q1: What are our strengths?
A1: ※Quality Assurance -- The products have passed the authoritative certifications of CE-ATC, ISO, QMS, etc. by the third-party testing institutions.
※Leading technology -- with new high precision sensor R&D technology and professional design team, constantly improving performance, 21 years focus on quality, 3 invention patents 17 application patents.
※Tailor-made - With mature technical capability and rich development experience, we can tailor encoders for different precision needs in various mechanical equipment.
※Efficient service - make full use of the existing environmental information resources unified planning, unified specifications, unified construction, time-saving and efficient.
Q2:What can we do for you?
A2:We can provide you with services in the field of elevator, motor, CNC, textile, robot, wind, medical, assembly line equipment and other automation technology industries.
Q3: How to select a right encoder model?
A3: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.
Q4: Do you offer technical support?
A4: Yes, we have professional technician who can solve all your doubts.
★7. Our History
In 1988-1998, The elder generation produced optical products in a small workshop in Dongtou District, Wenzhou, laying a solid foundation for the subsequent development of encoders and infrared optics.
In 1999, The founder was employed by Shanghai No.1 Optical Factory as a senior engineer, engaged in optical research and development, and made many scientific breakthroughs.
In 2000, The founder took the opportunity of privatization of state-owned enterprises and planned to establish a company.
In 2001, Shanghai Hengxiang Optical Electronics Co., Ltd. was formally established, and the first S38 series products are independently developed in the same year.
In 2008-2019, Formally joined Alibaba's to expand overseas markets, and obtained ISO Quality Management System Certification.
In 2010- 2014, Three invention patents ,five new utility patents and a CE-ATC certificate was obtained.
Awarded the Honor of Shanghai High-tech Enterprise and Alibaba Integrity Pioneer Enterprise.
In 2015-2020, Moved factory to Songjiang Chuangyi International Industrial Park ,Obtained QA international certification and QMS quality management system certification.
In 2021, Obtained 14 new utility patents.
★8. Technology patents & Certificates
Awarded honorable enterprise certificates such as 3 invention patents and 17 utility model patents, CE-ATC certificate, ISO Quality Management System Certification, QMS Quality Management System certificate, and pioneer enterprise
We passed the national quality management system certification with all the items tested conforming to it, thus gaining the professional production qualification.
Product Tags:
|
|

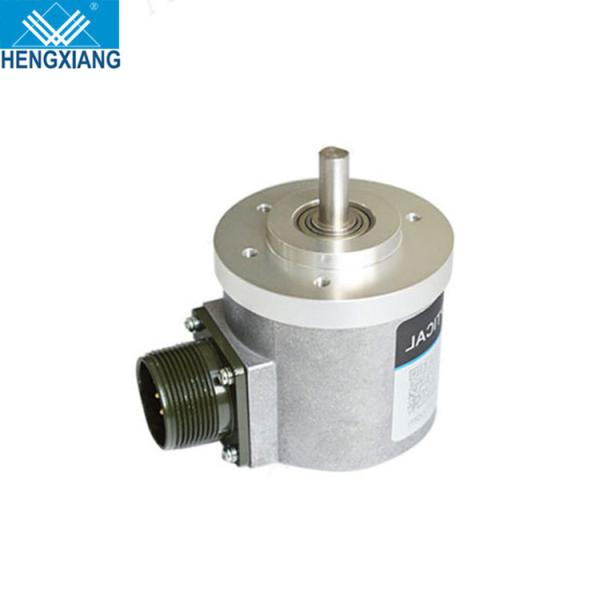

S65 Stainless Steel Solid Shaft Encoder External Dia 65mm Images
|
