Reference model number of K38 series
K38-T4C1000
K38-Q3F900
K38-T2N800
K38-Q1V720
K38-T6E450
K38-Q4C400
K38-T3FH360
K38-Q2P256
K38-T1F200

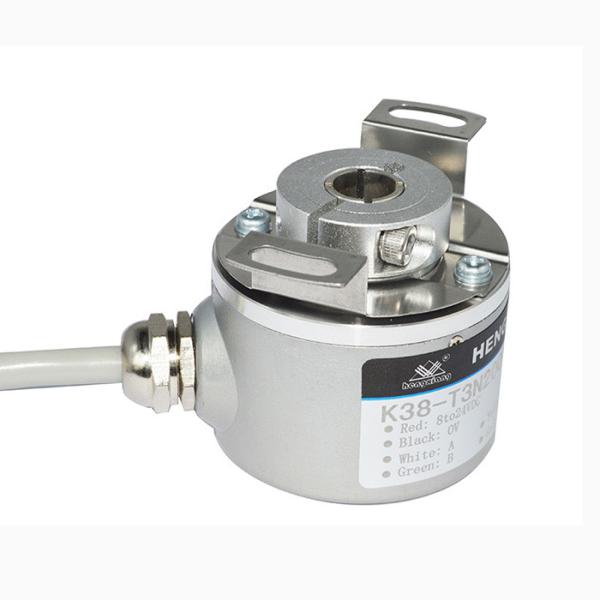

Product Description of K38 encoder
| Items | Basic parameters |
| Brand | HENGXIANG |
| Output mode | NPN/PNP(Open Collector Output) |
| | Voltage output |
| | Push-pull output |
| | Long line drive (26LS31) |
| | Compatible RS422 |
| | Long line drive (RT7272) |
| Environmental temperature | Operating temperature: -20~+90° (Non icing) |
| | Storage temperature: -25~+100° (Non icing) |
| Environmental humanity | Operating and storage: 35~85%RH (non-condensing) |
| Shell | Die cast aluminum |
| Consumption current | 100mA Max |
| Shaft Load | Radiel: 40N; Axial:20N |
| Top REV | 5000RPM ;IP65≤3000 RPM |
| Insulation strength | AC500V 60s |
| Insulation resistance | 10MΩ |
| Shock(endure) | 490m/s2,11 ms three times for X,Y,Z direction individually |
| Protection grade | IP50 ; IP65 |
| Cable length | 1000mm |
| starting torque | less than 9.8X10-3 N.m |
| Intertia moment | less than 6.5x 10-6kg.m2 |
| package | Carton box |
| Net weight | About 140g (with package) |
| Certification | CE |
Shipment
Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.
You could select the express according to your requirements if freight collector
If you do not have any courier account, we will check and find a cheapest and safety express for you.
Our factory has 30% discount with most courier company, so price could be as cheap as possible.
Questions you may like to know before ordering
Q: What’s your brand?
A: HENGXIANG
Q: Can you product ship to our country?
A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.
Q: How to get the latest price?
A: Contact us and tell me the encoder model selection.
Q: How to select a right encoder model?
A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.
Q: Can you factory offer a sample?
A: Yes, sample can be provided.
Q: How to pay for a sample?
A: Currently, our factory accept T/T, Credit card, Paypal, Western Union or cash.
Q: Do you have some videos of your products?
A: Yes, you could visit our YOUTUBE page for encoder videos.
Q: What’s your encoder product guarantee policy?
A: 1 year quality warranty and life-long technical support.
Q: Where can I download the encoder catalogue or datasheet?
A: You could visit our official website or email us directly to the latest files.
Q: What parameters are requested before ordering an encoder?
A: You should get some basic parameters before you start to order. Such as installation dimensions, resolutions, circuit signal, power supply voltage, etc.
If you have any doubt on selecting the model, you are welcome to contact us for more assistant.
