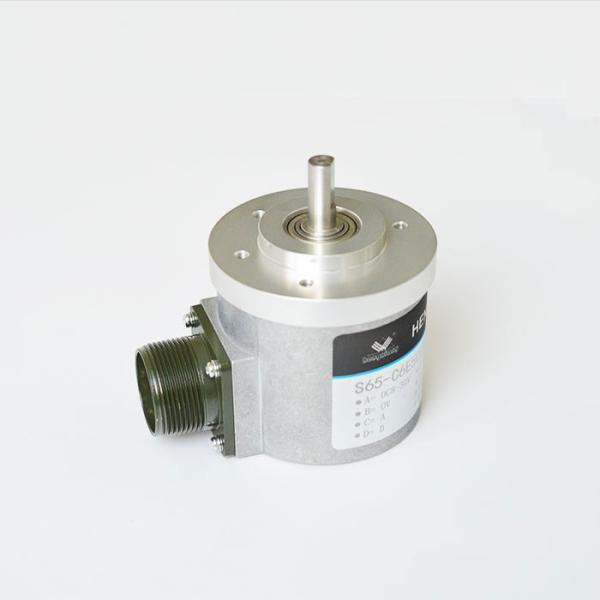

S65 heavy duty solid Shaft Incremental Encoders 2048 pulse waterproof dustproof encoder IP65
Characteristics
Encoder type: Incremental encoder
Solid Shaft diameter: 8mm (D shape)
Top response frequency: 300KHZ
Allowable ripple: ≤3%rms
Bearing life: 1.5x109 revs at rated load (100000hrs at 2500RPM)
Shaft Material: Stainless steel
Shell Material: Die cast aluminum
Cable length: 1000mm (cable with shielding)
Principle of encoder
Incremental rotary encoders provide a serial output signal on a single transmission line. One sensor must be connected to one controller.
An incremental encoder has at least 1 output signal “A” or typically 2 output signals, called “A” and “B”. These 2 signals are set up with a 90° offset, which is required for the detection of the encoder’s rotation. By turning the encoder clockwise, the “A” pulse is rising 90° ahead of the “B” pulse, by turning the shaft counterclockwise, the “B” pulse is rising ahead of the “A” pulse.
Additionally some incremental encoders output a “Z” signal. Once every rotation, this Z signal is rising for typically 90°, on the exact same position. This can be used as an accurate reference point.
Some incremental encoders also have additional differential signals, called “/A”, “/B” and “/Z”. These signals are inverted “A”, “B” and “Z” signals. Controllers can compare each pair (“A” must be equal to inverted “/A”) to ensure that there is no error during the transmission.
Additionally the transmission sensitivity is improved by transmitting the differential signals through a twisted pair cable.
Detail Specifications
| Items | Basic parameters |
| Brand | HENGXIANG |
| Encoder type | Incremental encoder |
| External diameter | 65mm |
| Enviromental humidity | Operating and storage: 35-85%RH(noncondensing) |
| Vibration(endure) | Amplitude 0.75mm,5-55Hz,2 hours for three axis individually |
| Sock(endure) | 490m/s2 ,11 ms three times for X,Y,Z direction individually |
| Shaft Material | Stainless steel |
| Shell Material | Dia cast aluminium |
| Cable length | 1000mm(cable with shielding) |
| Certification | CE |
| package | Carton box |
| Net weight | About 350g (with package) |
| Resolution | 50;60;100;200;250;256;300;360;400;450;500;512;600;720;1000 |
| | 1000;1024;1200;1250;1440;1800;2000;2048;2500;2880;3000; |
| | 3600;4000;4096;5000;5760;8192;10000;11520;16384;20000; 23040 |
Usage of encoder
DC servo motor
Stock driver
PMDC geared motor
Brushless dc motor
Servo motor
Drawing machine
VFD
Inverter
Variable frequency driver
Embroidery machine
Elevator
Printing machinery
Projector
Our advantage
CE certification for all models
Prompt delivery date
100% full inspection before shipment
Customers from about 200 countries
IS09001:2015 Certification
Trademark Registration certificate
Some Related S65 encoder model number
S65-T3V512D DC5V
S65-C3V512 DC5V
S65-C6CD DC5V
S65-T6C1024 DC5V
S65-T3N1024 DC5-30V
S65-T3F2000 DC12V
S65-C3N2500D DC12-24V
S65-T6E4096 DC8-30V
S65-T1N8192 DC12-24V
S65-T6C10000 DC5V
S65-C6E16384D DC8-24V
S65-T3F20000D DC5-30V
S65-T3F23040 DC8-30V
Payment terms
1. T/T, western union, credit card, Paypal, etc
2. 3-5 working days after payment received
3. Encoders will be shipped once ready
Package
Each single encoder is packed into a single safe carton with protecting bubble.
Then all encoders will be put into a bigger carton to prepare shipment.
